Is TPU coated fabric good for making bags?

TPU-coated fabric is a high-performance material that combines thermoplastic polyurethane (TPU) with base fabrics (such as nylon or polyester). It is non-toxic, odorless, and does not contain harmful plasticizers.

TPU-coated fabric has excellent waterproof properties, effectively blocking liquid water while maintaining good flexibility and low-temperature resistance, and is not prone to cracking.

In the luggage industry, TPU-coated fabric is highly suitable for making dry bags, waterproof backpacks, ski bags, transparent “jelly bags”, and medical bags, especially for bags that need to withstand rain, harsh environments, or frequent use.

This post will explore the waterproof performance, environmental friendliness, and suitability for bag manufacturing of TPU-coated fabric.

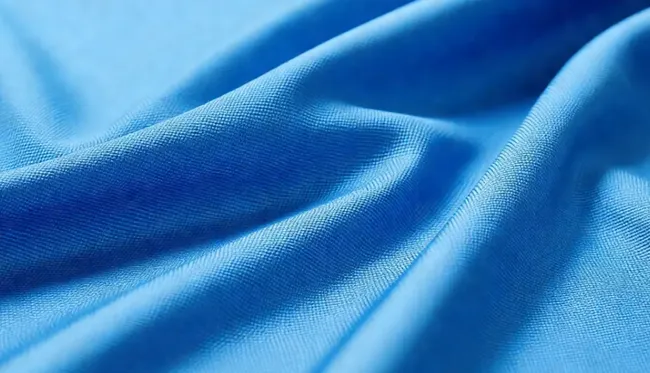

What Is TPU Coated Fabric?

TPU-coated fabric is a high-performance composite material formed by attaching thermoplastic polyurethane elastomer (TPU) to the surface of a textile substrate through a special process. It combines the physical strength of the base fabric with the excellent functional properties of TPU, and has been widely used in recent years in areas such as luggage, outdoor equipment, medical products, and footwear materials as a functional fabric.

What Is TPU?

TPU (thermoplastic polyurethane) is a type of high-molecular elastomer that lies between rubber and plastic.

The Function of the TPU Coating

When TPU is applied to fabrics (such as polyester or nylon), it forms a thin protective layer, thereby enabling the material to:

• be waterproof or have high waterproof performance, windproof
• be flexible and elastic (unlike some plastics that are prone to cracking)
• be wear-resistant (suitable for heavy use)
• be resistant to chemicals and oil

The Characteristics of TPU

Property	Description
Ecofriendly & Nontoxic	Contains no plasticizers or halogens; recyclable; does not release dioxins or other toxic gases when burned
High Abrasion Resistance	3–5 times more wearresistant than natural rubber; far superior to PVC
High Elasticity	Excellent resilience; withstands repeated flexing without deformation
Oil & Chemical Resistance	Good resistance to grease, gasoline, and most solvents
LowTemperature Flexibility	Remains flexible at –40°C without stiffening or cracking
HeatSealable	Can be seamlessly bonded by highfrequency welding or hotair welding

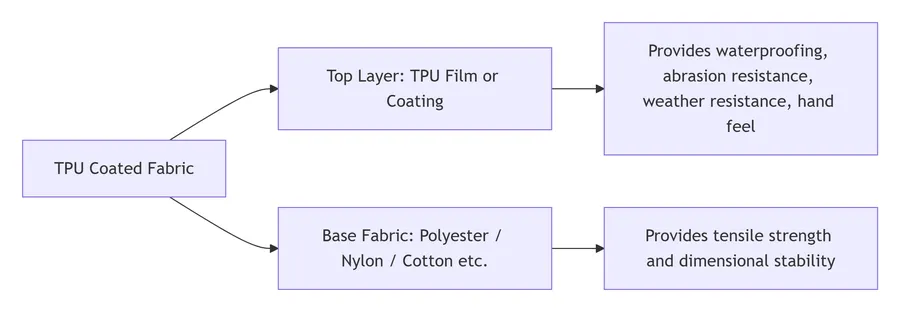

The Structure of Coated Fabric

TPU coated fabric typically consists of two layers:

Process Type: Structure Determines Performance

Classified by Coating Structure

• Single-layer coating: TPU is directly coated onto the substrate surface, the process is simple but the function is single.
• Double-layer composite: The textile layer is directly bonded to the TPU membrane, lightweight and highly protective, commonly used in outdoor clothing.
• Three-layer composite: The TPU membrane is sandwiched between two layers of fabric, enhancing durability and protection, suitable for extreme environments.

Classified by Substrate Type

• Polyester-based TPU coating fabric: High strength, UV-resistant, suitable for long-term outdoor use (such as tents, backpacks).
• Nylon-based TPU coating fabric: Lightweight, good flexibility, suitable for dynamic sports scenarios (such as tactical equipment, water sports clothing).
• Blend-based TPU coating fabric: Combining the softness of cotton and the durability of polyester, used for casual outdoor clothing.

Classified by Functional Characteristics

• Waterproof type: Prevents down from running, used for down jacket fabrics.
• Flame-retardant type: Achieves fire protection through special treatment, applied in fire-fighting and industrial fields.
• UV-resistant type: Adds UV absorbers to protect the skin from UV damage.

TPU Coated Fabric vs. Other Coated Materials

Comparison	TPU Coated Fabric	PVC Coated Fabric	PU Coated Fabric
Ecofriendliness	⭐⭐⭐⭐⭐ Nontoxic, recyclable	⭐⭐ Contains plasticizers, difficult to degrade	⭐⭐⭐ Relatively ecofriendly, but solventbased PU emits VOCs
Softness	Soft, pleasant hand feel	Becomes stiff at low temperatures; plasticlike feel	Soft, feels similar to genuine leather
Abrasion Resistance	Excellent	Good	Good
LowTemperature Performance	Remains flexible at –40°C	Becomes brittle at low temperatures	Hardens around –20°C
Hydrolysis Resistance	Excellent (especially polyether type)	Good	Moderate (prone to hydrolysis aging)
Cost	Higher	Lower	Moderate
Typical Applications	Highend outdoor gear, medical products, bags	Rainwear, billboards	Apparel, upholstery, general bags

Applications in the Luggage Field

Due to its excellent performance and environmental-friendly properties, TPU-coated fabric is widely used in the luggage industry:

1. Waterproof Bags

• Dry bags, waterproof backpacks, waterproof travel bags: TPU can be heat-sealed to form a completely waterproof structure, with IPX ratings up to 6 or above
• Beach bags, river-wading bags: Resistant to seawater corrosion, easy to clean

2. Sports and Outdoor Backpacks

• Snowboarding backpacks: Resistant to low temperatures, not prone to cracking
• Riding bags, running bags: Lightweight, wear-resistant, water-repellent
• Mountaineering backpacks: High-strength base fabric + TPU coating, combining durability and water resistance

3. Combining Fashion and Functionality

• Transparent TPU bags: The “jelly bag” that has become popular recently, transparent, fashionable and durable
• Functional business bags: Water-repellent, easy to clean, suitable for commuting

4. Specialized Luggage

• Medical bags, emergency bags: TPU antibacterial, resistant to disinfection, easy to clean
• Military and police tactical bags: Resistant, weather-resistant, quiet (TPU-coated fabric has low friction sound)

Typical Performance Parameters (e.g., 500D Polyester with TPU Coating)

Parameter	Typical Value
Base Fabric	Polyester / Nylon (150D – 1000D)
Coating Thickness	0.1 mm – 0.5 mm
Hydrostatic Head (Waterproofness)	5,000 mm – 20,000 mm+
Cold Resistance	–20°C to –40°C
Abrasion Resistance	Martindale > 50,000 cycles
Peel Strength	Strong bond between coating and fabric; resists delamination

Care & Maintenance

Action	Method
Daily Cleaning	Wipe with a damp cloth
Stubborn Stains	Use mild detergent + soft cloth, gently wipe
Avoid	Do not iron at high temperatures; avoid organic solvents (e.g., alcohol, acetone)
Storage	Avoid prolonged folding under heavy pressure to prevent permanent creases in the coating

Environmental Protection Trend

TPU-coated fabrics are gradually replacing PVC as the preferred choice for environmentally friendly designs:

• No plasticizers: TPU does not require the addition of harmful plasticizers such as phthalates
• Recyclable: Some TPU fabrics can be recycled and reused
• Biobased TPU: Some manufacturers have launched TPU-coated fabrics with some raw materials derived from plants

Advantage Analysis: Why it is the Preferred Choice for High-Performance Materials?

Comprehensive Performance

A single material is difficult to simultaneously meet the requirements of waterproofing, breathability, wear resistance, and environmental friendliness. However, the TPU coated fabric achieves the integration of multiple functions through structural design and process optimization.

Great Customization Potential

By adjusting the TPU formula (such as polyester type and polyether type), coating thickness (30-80 grams per square meter), and substrate selection (nylon, polyester, blend), it can precisely match the performance requirements of different scenarios.

Sustainability Trend

The emergence of bio-based TPU and degradable coatings responds to environmental regulations and consumer demands, providing brands with a technical path for green transformation.

Cost-Benefit Balance

Although the unit price is higher than that of ordinary coating fabrics, its long lifespan, low maintenance cost, and multi-functionality offer a higher cost-effectiveness throughout the entire life cycle.

Is TPU Coating Waterproof?

Yes, the TPU coating has excellent waterproofing properties. In many applications, it can even achieve a completely waterproof effect.

TPU (thermoplastic polyurethane) is itself a dense, pore-free polymer material, and water molecules cannot penetrate it. When it is applied as a coating or film to a fabric, it can form a reliable waterproof barrier.

The Waterproofing Principle of TPU Coating Fabric

Molecular Structure Characteristics

The molecular chains of TPU (thermoplastic polyurethane) contain polar groups, which can form hydrogen bonds with water molecules, thereby reducing the wetting property of water molecules on the material surface. At the same time, the microscopic structure surface of TPU has a certain roughness, which can form an air layer, further preventing water molecules from penetrating.

Microporous Structure Design

• Wet coating process: Through the water solidification method, uniform and dense micropores are formed on the fabric surface, with the pore diameter controlled between 0.2–20 µm (about 1/20,000 of the diameter of a water droplet, but 700 times the diameter of a water vapor molecule).
• Waterproof and breathable balance: The microporous structure allows water vapor (such as sweat) to pass through while preventing liquid water (such as rain) from penetrating, achieving the dual functions of “waterproof and breathable”.

Hydrophilic Group Effect

Some TPU coatings introduce hydrophilic groups, using the “adsorption–diffusion–desorption” process to transfer water molecules. This mechanism does not rely on micropores but transfers water vapor from the high-pressure side (inside the body) to the low-pressure side (outside the body) through the Brownian motion of the molecular chains, thus maintaining dryness of the skin.

Summary of Waterproofing Principle

Principle	Explanation
Material Density	TPU has a tight molecular structure with no continuous pores, preventing water molecules from passing through
Continuous Film Layer	The coating or lamination process creates a complete, continuous waterproof layer on the fabric surface
HeatSealable	TPU can be fully sealed at seams using heat bonding or highfrequency welding, eliminating the risk of water penetration through stitching

How Does TPU Achieve Waterproofing Effect?

TPU is a block copolymer, meaning its molecular structure consists of “hard” and “soft” segments.

• Barrier: The hard segments come together to form a dense and continuous network, physically preventing water molecules from passing through.
• Sealing: Unlike coatings that may crack or flake off, TPU is elastic. It stretches and returns to its original shape with the fabric, preventing the formation of microcracks and thus avoiding water infiltration.
• Weldability: One of the greatest advantages of TPU is that it can undergo heat welding or high-frequency welding. This enables manufacturers to completely seal the seams, thereby creating products (such as dry bags) that have waterproof properties at the seams rather than just on the surface of the fabric.

The Waterproofing Performance Advantages of TPU Coating Materials

High Water Pressure Resistance

The static water pressure tolerance value of high-quality TPU coating can reach over 10,000 mm, far exceeding the standards of ordinary home waterproofing (such as roof and wall waterproofing projects), and can long-term resist the penetration of liquid water such as rainwater and snow water.

Weather Resistance and Aging Resistance

• Wide temperature range adaptation: It can maintain flexibility and waterproof performance in the temperature range of -30℃ to 80℃. It is not prone to cracking at low temperatures and does not oxidize and age easily at high temperatures.
• Ultraviolet resistance: The ultraviolet penetration rate is less than 5%, suitable for long-term outdoor use (such as hiking clothes, tents, etc.).

Malleability and Tear Resistance

The tensile strength and tear resistance of TPU coating are superior to traditional PVC or asphalt-based materials, which can effectively resist the fine cracks caused by thermal expansion and contraction of building structures, or the friction and scratches during the use of outdoor equipment.

Environmentally Friendly and Non-Toxic

TPU is an environmentally friendly polymer, non-toxic and odorless, in line with the safety standards of modern green buildings and consumer products (such as recyclable, degradable, and low pollution during combustion).

Key Concept: Hydrostatic Head (HH)

This is a metric for measuring waterproofing performance. It indicates the water pressure (in millimeters) that the fabric can withstand before leakage occurs.

• > 1500 mm HH: Suitable for general use, with a good waterproof grade.
• > 5000 mm HH: Suitable for high-performance in continuous rainfall.
• > 10000 mm HH: Suitable for exceptional waterproof performance in extreme conditions.

High-quality TPU composite materials typically exceed 10000 mm HH.

Summary of Waterproof Performance Indicators

Waterproof Level	Hydrostatic Pressure (mmH₂O)	Application
Waterrepellent	1,000 – 3,000	Light rain, brief exposure
Waterproof	3,000 – 8,000	Moderate rain, outdoor activities
Highly Waterproof	8,000 – 15,000	Heavy rain, highintensity outdoor use
Fully Waterproof	15,000 – 20,000+	Water sports, dry bags, dive bags

Performance in Actual Products

Product Type	Waterproof Performance	Key Techniques
Dry Bag	✅ Fully waterproof (IPX6–IPX7)	Rolltop closure + heatwelded seams
Waterproof Backpack	✅ Fully waterproof	TPU zippers + heatwelded seams
Outdoor Backpack	✅ Highly waterproof	Waterrepellent finish + waterproof zippers
Transparent TPU Bag	✅ Waterproof	Highfrequency welded seams
Business Bag	✅ Waterrepellent	TPU coated surface + waterproof zippers

The 3 Levels of “Waterproof” in TPU Coated Fabrics

Level	Construction	Waterproof Performance	Common Use
1. Coated Fabric​	TPU applied to face of fabric.	Water-Resistant to Waterproof. Beads water. May wet out under prolonged pressure/hydrostatic head.	Everyday bags, casual packs.
2. Laminated Fabric​	TPU film bonded between outer fabric and inner liner.	Fully Waterproof. Higher hydrostatic head rating. More durable waterproof layer.	High-performance outdoor gear.
3. Seam-Sealed Construction​	TPU-coated fabric + welded/taped seams.	Technically Waterproof. No needle holes. The gold standard​ for waterproof bags.

TPU vs. Other Coated Materials – Waterproof Performance

Material	Base Waterproofing	Typical Hydrostatic Pressure	Seam Sealing	Hydrolysis Resistance
TPU Coating	Excellent	5,000 – 20,000+ mm	Heatsealable, fully waterproof	Excellent
PU Coating	Good	2,000 – 5,000 mm	Not heatsealable; requires taping	Moderate
PVC Coating	Excellent	5,000 – 15,000 mm	Heatsealable, fully waterproof	Good
Uncoated Fabric	Poor	< 1,000 mm	Stitches leak water	—

Waterproof Durability

The waterproof performance of the TPU coating is extremely long-lasting under normal usage conditions:

• Non-hydrolysis: The polyether type TPU has excellent hydrolysis resistance and maintains its waterproof property even after many years of use.
• Non-peeling: The bonding strength with the base fabric is high, and the coating is not likely to peel off.
• Durable washing: Can be wiped with a damp cloth, and some can be gently machine washed.
• Maintenance tips: Avoid prolonged contact with high-concentration alcohol and oil-based solvents. Do not iron at high temperatures. Can maintain waterproof performance for a long time.

Waterproof and Breathable

It is necessary to distinguish between standard waterproof TPU and breathable TPU membranes:

• Standard TPU: Completely blocks liquid water and air. This is used for items such as inflatable rafts, medical air mattresses, and dry bags that require zero leakage.
• Breathable TPU: Designed with tiny pores or hydrophilic properties. These pores are small enough to block liquid water (rain), but large enough to allow water vapor (sweat) to escape. This is used in high-end outdoor clothing and footwear to keep the wearer dry from rain and sweat.

Key Limitations and Misunderstandings

• “Waterproof” ≠ “Water-resistant”: A bag coated with TPU material can withstand heavy rain and water immersion for a short period of time, but prolonged immersion (such as in a river) will eventually create pressure, causing water to seep through the zipper or seams.
• The zipper is the weak point: Although the fabric itself may have waterproof properties, ordinary spiral zippers do not. To achieve true waterproofing, the bag must use a waterproof zipper (such as AquaGuard®) and be equipped with a windproof cover.
• Wear and tear may damage its performance: If the surface of the outer fabric is severely worn, it may penetrate the underlying TPU layer, creating a leakage point.

Protecting Waterproof Performance

Clean with a damp cloth; avoid using strong detergents.

Do not machine wash or dry clean as this may cause the TPU layer to peel off.

Reapply the waterproof treatment agent on the outer fabric (not on the TPU itself) to keep water droplets adhered, thereby reducing the overall wetness level and the pressure on the waterproof layer.

Is TPU Coated Fabric Sustainable?

Yes. The sustainable development of TPU-coated fabrics shows significant potential. Compared to traditional PVC-coated fabrics, it has notable advantages in terms of environmental protection and health, but it also faces some challenges. The level of its sustainability largely depends on the materials it is made of and the environmental efforts made by the producers. At the same time, it is necessary to promote its development towards a more environmentally friendly direction through technological innovation and industrial collaboration.

Advantages: The Environmental Characteristics of TPU-coated Fabrics

Recyclability

The TPU material itself is recyclable and can be regenerated and reused through physical or chemical methods. For example:

• Mechanical recycling: The discarded TPU products are crushed and then re-melted and granulated to be used in the production of low-demand products (such as floor mats, packaging materials).
• Chemical recycling: Through depolymerization reactions, TPU is decomposed into monomers and re-synthesized into high-performance materials to achieve a closed-loop cycle.

Some enterprises have achieved a high recovery rate for TPU composite fabrics (for example, Anta’s “RE:SOURCE” program has a recovery rate of 86.4%), but the overall industry recovery rate is still limited by technical costs and the imperfect classification system.

Biodegradability

Traditional TPU takes a long time to degrade in the natural environment (3-5 years), but the new bio-based TPU (such as those made from vegetable oil and corn starch) can significantly shorten the degradation time. For example:

The “enzyme-responsive TPU” developed by the Ningbo Institute of Materials Technology and Engineering of the Chinese Academy of Sciences can complete the main chain breakage within 90 days after adding cellulose enzymes to the soil.

The biodegradation process does not release harmful substances, avoiding pollution to the soil and water sources.

The Production Process Is Clean

Solvent-free compounding process: replaces the traditional solvent-based PU coatings (which require the use of toxic solvents such as DMF) and eliminates the emission of volatile organic compounds (VOCs). For example:

The TPU hot melt bonding process has no VOC emissions throughout the process, and energy consumption is reduced by 37% (measured data by the Ministry of Industry and Information Technology).

Low-temperature processing technology: By optimizing process parameters (such as AI temperature control accuracy ± 0.5℃), energy consumption and carbon emissions are reduced.

Product Durability Extends the Service Life

The TPU-coated fabric has excellent wear resistance, anti-torsion performance (4-5 grades), and anti-aging properties, significantly extending the product’s service life. For example:

The average service life of the TPU composite knitted fabric is 3.2 years (the industry average is 1.9 years), thereby reducing the resource consumption per unit time.

Challenge: Environmental Impact of TPU Coated Fabrics

Traditional Production Relies on Petroleum-Based Raw Materials

Conventional TPU is made from polyether or polyester polyols and isocyanates, which depend on fossil resources and have high carbon emissions.

Solution: Promote bio-based TPU (such as BASF Elastollan® N 1080 containing a renewable carbon content of ≥25%), reducing dependence on petroleum.

Risk of Microplastic Pollution

During washing, TPU fibers may release microplastics, which enter the water body and threaten marine ecosystems.

Solution: Develop soluble TPU coatings or optimize the fabric structure to reduce fiber shedding.

Inefficient Recycling System

High energy consumption and complex processes limit large-scale recycling applications, and the actual recovery rate is still low.

Solution:

Establish a full-chain collaborative recycling model (such as Hengli Petrochemical, Lu Tai Textile, and Anta jointly building a joint laboratory).

Promote digital platforms (such as Alibaba’s “Rhinoceros Manufacturing” “TPU Fabric Digital Twin Repository”) to optimize resource matching.

Insufficient Low-Temperature Performance

Conventional TPU is prone to brittleness below -15℃, limiting its application in winter clothing.

Solution: Introduce polycarbonate-type TPU or blend with POE elastomer, reducing the brittleness temperature to -35℃.

Summary of the Core Advantages and Challenges

Dimension	Sustainable Advantages	Sustainable Challenges
Raw Materials & Production	• Nontoxic formulation: contains no plasticizers or phthalates • Innovation direction: development of biobased TPU, reducing dependence on fossil fuels • Cleaner production: some manufacturers use solventfree, ecofriendly processes	• Base materials: most are still derived from petroleum, with associated carbon emissions
Product Durability	• Longlasting: excellent abrasion and tear resistance extend product life, reducing waste	• None noted
Recyclability	• Circular potential: recycled TPU can reduce carbon footprint by up to 91% or 39% compared to virgin TPU • Technological innovation: the industry is overcoming technical hurdles to produce 100% recyclable TPU	• Recycling difficulty: separating TPU from polyester fabric is technically challenging • Conventional PU is rarely recycled at endoflife
Biodegradability	• Significant potential: biobased TPU that completely degrades in industrial composting within 21 weeks is already available • Research breakthrough: recent studies have achieved about 60% biodegradation of PU coatings in soil	• Most types are nonbiodegradable: traditional TPU and PU do not readily degrade in natural environments
Environmental Certifications	• Wide range of certifications: many TPU products have obtained OEKOTEX, GRS, and other authoritative ecolabels	• None noted

TPU vs. PVC (Sustainability Comparison)

Aspect	TPU Coated Fabric	PVC Coated Fabric
Toxic chemicals	None	Chlorine, phthalates, heavy metals
Recyclable	100% recyclable	Almost impossible (<1%)
Biodegrades	Yes (bio-based grades)	Never (100+ years)
Burns safely	Clean (CO₂ + H₂O)	Releases dioxins (toxic)
Carbon footprint	0.8 kg CO₂e/m²	1.5 kg CO₂e/m²
Lifespan	Long (5–10 years)	Short (1–3 years)

Sustainability Comparison of TPU vs. PVC vs. PU

Feature	TPU Coated Fabric	PVC Coated Fabric	Standard PU Coated Fabric
Recyclability	High (Thermoplastic, meltable)	Low (Contains chlorine, hard to separate)	Medium (Depends on cross-linking)
Toxicity	Low (No phthalates/chlorine)	High (Chlorine, plasticizers)	Medium (Solvent concerns)
Carbon Footprint	Lower (~7.2 kg CO2e/kg)	Higher (~12.5 kg CO2e/kg)	Medium
Durability	Very High (Abrasion/Cold resistant)	Medium (Cracks over time)	Medium
End of Life	Can be granulated for new products	Often landfilled or incinerated	Often landfilled

Sustainability Comparison Table

Material	Key Sustainability Points	Recyclability	End-of-Life Impact
TPU Coated Fabric​	No phthalates, durable, recyclable in theory.	Difficult​ (composite material). Requires specialized chemical recycling.	Often landfilled. Lower toxicity than PVC in landfill.
PVC Coated Fabric​	Contains toxic additives, high-impact production.	Not recyclable​ in practice.	Long-term leaching risk in landfills; toxic fumes if incinerated.
Standard PU Coated Fabric​	More eco than PVC, less durable than TPU.	Very Difficult.	Similar to TPU, but may degrade faster.
Waxed Canvas​	Natural fibers, biodegradable treatments.	Biodegradable/Compostable​ (with proper treatment).	Low impact if natural.
PFC-Free DWR Treated Fabric​	Water-repellent, not fully waterproof.	Depends on base fabric (e.g., recycled polyester).	Depends on base fabric.

Sustainability Rating & Certification Systems

Certification	Focus Area	Value for Buyers
GRS (Global Recycled Standard)	Recycled content, social & environmental practices	Ensures recycled materials are properly tracked and sourced ethically
OEKO-TEX 100	Chemical safety for human use	Guarantees no harmful substances are present
ISO 14001	Environmental management systems	Indicates manufacturer follows eco-friendly production processes
B Corp	Holistic social & environmental performance	Measures overall sustainability beyond just materials
FSC (Forest Stewardship Council)	Sustainable wood-based TPU feedstocks	Relevant for bio-based TPU derived from wood pulps

Practical Tips for Sustainable Procurement

• Prioritize Recycled/Biobased TPU: Look for fabrics that contain at least 50% recycled TPU components or are made from renewable resources.
• Request Certifications: Require suppliers to provide third-party certifications such as GRS or OEKO-TEX to verify the sustainability claims.
• Choose Durable Products: Select fabrics that have undergone high-quality TPU coating treatment and have durable coatings to extend the product lifespan and reduce waste.
• Support Circular Economy Initiatives: Partner with manufacturers that offer programs for recycling and reusing of used products.
• Assess Supply Chain Transparency: Require suppliers to share information on their raw material procurement, energy usage, and waste management practices.

Future Sustainable Development Trends

• Advanced recycling technologies: Emerging chemical and mechanical recycling processes will make the separation and reuse of TPU and textile fibers easier, thus closing the loop of the circular economy.
• Increased adoption of bio-based TPU: As production costs decrease and scalability improves, bio-based TPU is expected to occupy a larger share in the market, reducing reliance on petroleum. Digital traceability: Blockchain technology will achieve full traceability throughout the supply chain, enabling buyers to verify the sustainability certification of TPU-coated fabrics in real time.
• Zero waste manufacturing: Manufacturers will adopt more efficient coating processes (such as precision spray coating) to reduce material waste and energy consumption.

Is TPU Coated Fabric Good for Making Bags?

Yes, TPU-coated fabric is highly suitable for making various bags. Especially, it excels in terms of being waterproof, durable, lightweight and environmentally friendly. It combines the strength of the fabric with the functionality of TPU, and has become the mainstream material choice for high-end backpacks, outdoor bags, waterproof bags, sports bags and fashionable functional bags.

The Core Advantages of TPU-coated Fabric in Bag Manufacturing

Excellent Water Resistance

The TPU coating can form a dense molecular film, with waterproof ratings ranging from IPX4 (splash-proof) to IPX7 (short-term immersion), suitable for making Umbrella bag, outdoor backpacks, travel cases and other scenarios requiring moisture protection.

Case: The climbing bag of Decathlon (Decathlon) uses TPU-coated nylon, maintaining internal dryness for up to 2 hours during a rainstorm test.

High Abrasion Resistance and Tear Resistance

The TPU coating significantly enhances the fabric’s abrasion resistance (Martindearl test over 50,000 times or more), and the tear resistance is increased by 3-5 times, suitable for frequent-use commuting bags and student backpacks.

Data: The abrasion resistance of TPU composite canvas is 8 times that of ordinary cotton canvas,  with a lifespan extended to over 5 years.

Lightweight Design

The density of TPU coating is low (about 1.1-1.2g/cm³), lighter than PVC coating by 20%-30% under the same protective performance, meeting the demand for lightweight in modern bags.

Application: The lightweight hiking bag (such as Osprey Daylite series) reduces weight by 15% through TPU coating while maintaining waterproof performance.

Low-Temperature Adaptability

The new TPU formula (such as polycarbonate type) can lower the brittleness temperature to -35℃, suitable for polar exploration bags, skiing equipment bags, etc., in low-temperature scenarios.

Test: In an environment of -20℃, TPU-coated fabric still maintains 85% flexibility, while PVC-coated fabric is prone to cracking.

Environmental Recyclability

Biobased TPU (such as BASF Elastollan® N series) can reduce carbon emissions by 30% and support mechanical recycling, aligning with the sustainable fashion trend.

Certification: Some brands (such as Patagonia) have launched TPU-coated bag and bag sets that have passed Bluesign® certification, ensuring no toxic substance emissions during the production process.

Key Characteristics & Benefits for Making Bags

Property	Description	Why It Matters for Bags
Extreme Flexibility & Softness​	Remains pliable and soft in a wide temperature range (-30°C to 80°C).	Bags maintain a supple hand feel, don’t crack in cold weather, and are more comfortable to carry.
High Abrasion & Tear Resistance​	Creates a very tough, protective surface that is resistant to scuffs and punctures.	Ideal for travel bags, backpacks, and tool bags that face rough handling.
Waterproof & Windproof​	Forms a seamless, monolithic barrier. Seams can be welded (taped) for 100% waterproofing.	Creates truly waterproof luggage, duffels, and outdoor packs. No need for a separate rain cover.
Eco-Friendly​	Contains no chlorine or plasticizers (like phthalates). It is recyclable​ and has a lower environmental footprint in production than PVC.	Key selling point for sustainable brands. Meets stringent regulations (REACH, OEKO-TEX).
Excellent Bonding​	Can be thermally welded (high-frequency or hot air) to create incredibly strong, sealed seams without stitching holes.	Enhances waterproof integrity and allows for modern, clean seam construction.

Considerations for Using TPU Coated Fabrics to Make Bags

Consideration	Explanation	Mitigation Suggestions
Higher Cost	TPU coated fabric is more expensive than PVC or ordinary PU	Position as midtohighend; highlight waterproof/durable/ecofriendly selling points
Poor Breathability	Fully waterproof means it does not breathe	Suitable for bags that are not worn tightly against the body, or add breathable back padding
Requires HeatSealing Process	To achieve full waterproofing, seams must be heatsealed	Choose factories with heatsealing capability, or use rolltop / seamless designs
Slightly Heavier than Plain Nylon	The coating adds some weight	Use lightweight base fabrics (e.g., 70D nylon) with thin coatings to balance

Bag Types Best Suited for TPU Coated Fabric

Bag Type	Reason
Dry Bags / Waterproof Sacks	Fully waterproof + heatsealable; IPX6–IPX7 rated
Waterproof Backpacks	Ideal for rainy commutes, cycling, hiking
Beach Bags / River Bags	Waterproof, seawaterresistant, easy to clean
Transparent Bags (Jelly Bags)	Hightransparency TPU; stylish and durable
Ski Backpacks	Lowtemperature performance; remains flexible at –40°C
Medical Bags / Emergency Kits	Easy to disinfect, chemicalresistant, waterproof
Kids’ Bags	Abrasionresistant, easy to clean, nontoxic
RainProof Business Bags	Waterrepellent coating maintains a professional look

Comparison with Other Common Bag Materials

Material	Waterproofing	Abrasion Resistance	EcoFriendliness	Cost	Hand Feel	Best For
TPU Coated Fabric	⭐⭐⭐⭐⭐	⭐⭐⭐⭐⭐	⭐⭐⭐⭐	⭐⭐⭐	Soft / transparent	Highend waterproof, outdoor, fashion
PU Coated Fabric	⭐⭐⭐	⭐⭐⭐	⭐⭐⭐	⭐⭐	Similar to leather	Fashion bags, casual bags
PVC Coated Fabric	⭐⭐⭐⭐	⭐⭐⭐	⭐⭐	⭐	Stiff / brittle in cold	Rainwear, promotional bags, lowend bags
Plain Nylon/Polyester	⭐	⭐⭐⭐	⭐⭐⭐	⭐⭐	Soft, lightweight	General backpacks, shopping bags
Leather	⭐⭐	⭐⭐⭐⭐	⭐⭐	⭐⭐⭐⭐⭐	Premium feel	Fashion bags, business bags

Provide Strategic Advice for Your Brand

• Segment the product line: Use TPU for your high-end, high-profit series (such as the “Technology” or “Explorer” series), as these series’ products need to meet customers’ expectations for outstanding performance. Use standard PU materials to produce your core, high-volume products.
• Utilize story elements: The PVC-free and more durable approach is highly persuasive. Combine relevant content (such as your video service), and showcase stitching welding or water testing, etc., to prove the rationality of its price.
• Verify supplier qualifications: Purchase from factories that provide OEKO-TEX or GRS certification for TPU fabrics, and consult them about the correct manufacturing techniques.

How Do Consumers Choose Bags with TPU Coating?

Check the certification: Opt for products that have passed Bluesign®, OEKO-TEX Standard 100 or GRS (Global Recycled Standard) certifications to ensure environmental friendliness and safety.

Test the performance:

• Waterproofness: Pour water onto the bag surface and observe if water droplets roll off;
• Durability: Use a key to gently scratch the surface and check if there are any marks;
• Flexibility: Place it in a low-temperature environment (such as the refrigerator freezer compartment) for 1 hour and test the smoothness of opening and closing.
• Re-design: Choose styles with detachable linings and modular compartments to extend the lifespan of the bag and reduce resource waste.

Conclusion

TPU coating fabric is a versatile and widely-applicable functional material, especially suitable for scenarios with high requirements for waterproofness and durability.

TPU-coated fabric is an ideal choice for high-end functional bags, balancing performance and sustainability concepts, and is suitable for brands that prioritize waterproofness, durability, and environmental protection.

If you are running your own bag brand and want to customize a bulk of bags made of TPU-coated fabric, please feel free to contact us to discuss the cooperation details.
